Neodymium permanent magnet
Rings

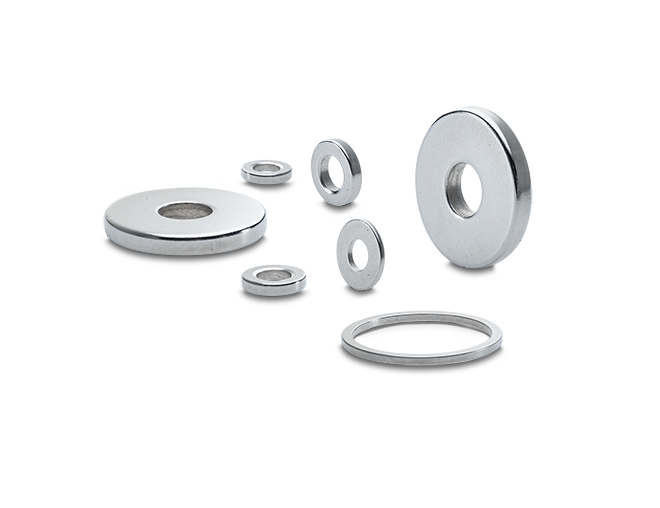

RINGS 19-131 MM
They are obtained by sintering Of Rare Earths. This kind of magnets reaches the highest values of magnetic attraction; for this reason, they are recommended where is required a great power in small spaces. Another advantae is the maintenance of the magnetic charge, higher than in other types. It's recommended to respect the max operating temperatures indicated in Physical Magnet Data Sheet.
All measurements are in millimeters. Other sizes and shapes on request.
The strength of attraction is purely indicative and it could be different depending on the type of application and assembly.
The magnetization is axial. Other kind of magnetization on request.
| CODE | TYPE | OD | ID | H | STRENGTH KG |
|---|---|---|---|---|---|
| RN01.35NI00.19141.5 | SC35MANI | 19 | 14 | 1,5 | 1,11 |
| RN01.35NI00.2073 | SC35MANI | 20 | 7 | 3 | 3,40 |
| RN01.35NI00.20810 | SC35MANI | 20 | 8 | 10 | 8,88 |
| RN01.35NI00.20820 | SC35MANI | 20 | 8 | 20 | 10,00 |
| RN01.35NI00.208.52 | SC35MANI | 20 | 8,5 | 2 | 2,15 |
| RN01.35NI00.20102 | SC35MANI | 20 | 10 | 2 | 2,04 |
| RN01.35NI00.21.58.52 | SC35MANI | 21,5 | 8,5 | 2 | 2,33 |
| RN01.35NI00.22.5131.5 | SC35MANI | 22,5 | 13 | 1,5 | 1,70 |
| RN01.35NI00.22.5151.5 | SC35MANI | 22,5 | 15 | 1.5 | 1,52 |
| RN01.35NI00.2381 | SC35MANI | 23 | 8 | 1 | 1,10 |
| RN01.35NI00.2382 | SC35MANI | 23 | 8 | 2 | 2,50 |
| RN01.35NI00.2383 | SC35MANI | 23 | 8 | 3 | 4,00 |
| RN01.35NI00.23132 | SC35MANI | 23 | 13 | 2 | 2,26 |
| RN01.35NI00.24154 | SC35MANI | 24 | 15 | 4 | 4,73 |
| RN01.35NI00.24.920.11.9 | SC35MANI | 24,9 | 20,1 | 1,9 | 1,61 |
| RN01.35NI00.2543 | SC35MANI | 25 | 4 | 3 | 4,40 |
| RN01.35NI00.2545 | SC35MANI | 25 | 4 | 5 | 8,50 |
| RN01.35NI00.2554 | SC35MANI | 25 | 5 | 4 | 6,50 |
| RN01.35NI00.2566 | SC35MANI | 25 | 6 | 6 | 9,35 |
| RN01.35NI00.27114 | SC35MANI | 27 | 11 | 4 | 6,50 |
| RN01.35NI00.29.5202 | SC35MANI | 29,5 | 20 | 2 | 2,48 |
| RN01.35NI00.29.522.53 | SC35MANI | 29,5 | 22,5 | 3 | 3,47 |
| RN01.35NI00.29.524.52 | SC35MANI | 29,5 | 24,5 | 2 | 2,00 |
| RN01.35NI00.30104 | SC35MANI | 30 | 10 | 4 | 7,40 |
| RN01.35NI00.30204 | SC35MANI | 30 | 20 | 4 | 5,90 |
| RN01.35NI00.30205 | SC35MANI | 30 | 20 | 5 | 7,64 |
| RN01.35NI00.302010 | SC35MANI | 30 | 20 | 10 | 12,40 |
| RN01.35NI00.3754 | SC35MANI | 37 | 5 | 4 | 9,20 |
| RN01.35NI00.37322 | SC35MANI | 37 | 32 | 2 | 2,21 |
| RN01.35NI00.37324 | SC35MANI | 37 | 32 | 4 | 4,70 |
| RN01.35NI00.40196 | SC35MANI | 40 | 19 | 6 | 12,00 |
| RN01.35NI00.40325 | SC35MANI | 40 | 32 | 5 | 8,24 |
| RN01.35NI00.43.884.9T | SC35MANI | 43,8 | 8 | 4,9 | 12,40 |
| RN01.35NI00.46412 | SC35MANI | 46 | 41 | 2 | 2,40 |
| RN01.35NI00.48153 | SC35MANI | 48 | 15 | 3 | 6,40 |
| RN01.35NI00.54465 | SC35MANI | 54 | 46 | 5 | 9,53 |
| RN01.35NI00.70328 | SC35MANI | 70 | 32 | 8 | 30,00 |
| RN01.35NI00.906812 | SC35MANI | 90 | 68 | 12 | 45,00 |
| RN01.35NI00.1318618 | SC35MANI | 131 | 86 | 18 | 80,00 |
