Neodymium permanent magnet

Countersunk hole

COUNTERSUNK HOLE BLOCKS (Axial Magnetization)

The neodymium magnetic blocks with countersunk hole offer great force of attraction even in the smallest dimensions, thus allowing the use and installation in confined spaces without compromising the grip, and thus avoiding the use of permanent glues or other fixing methods.
We supply this type of magnet divided into two polarities: this means that all the magnets purchased will attract each other on the side of the countersink, making them ideal for magnetic couplings or closures. (On request, it is possible to have all magnets supplied with the same polarity).

These features make them widely used in many sectors: furniture industry, design, packaging, advertising, automotive industry, lighting, etc.

Contact us to get a quick feedback on prices, availability and customized products.

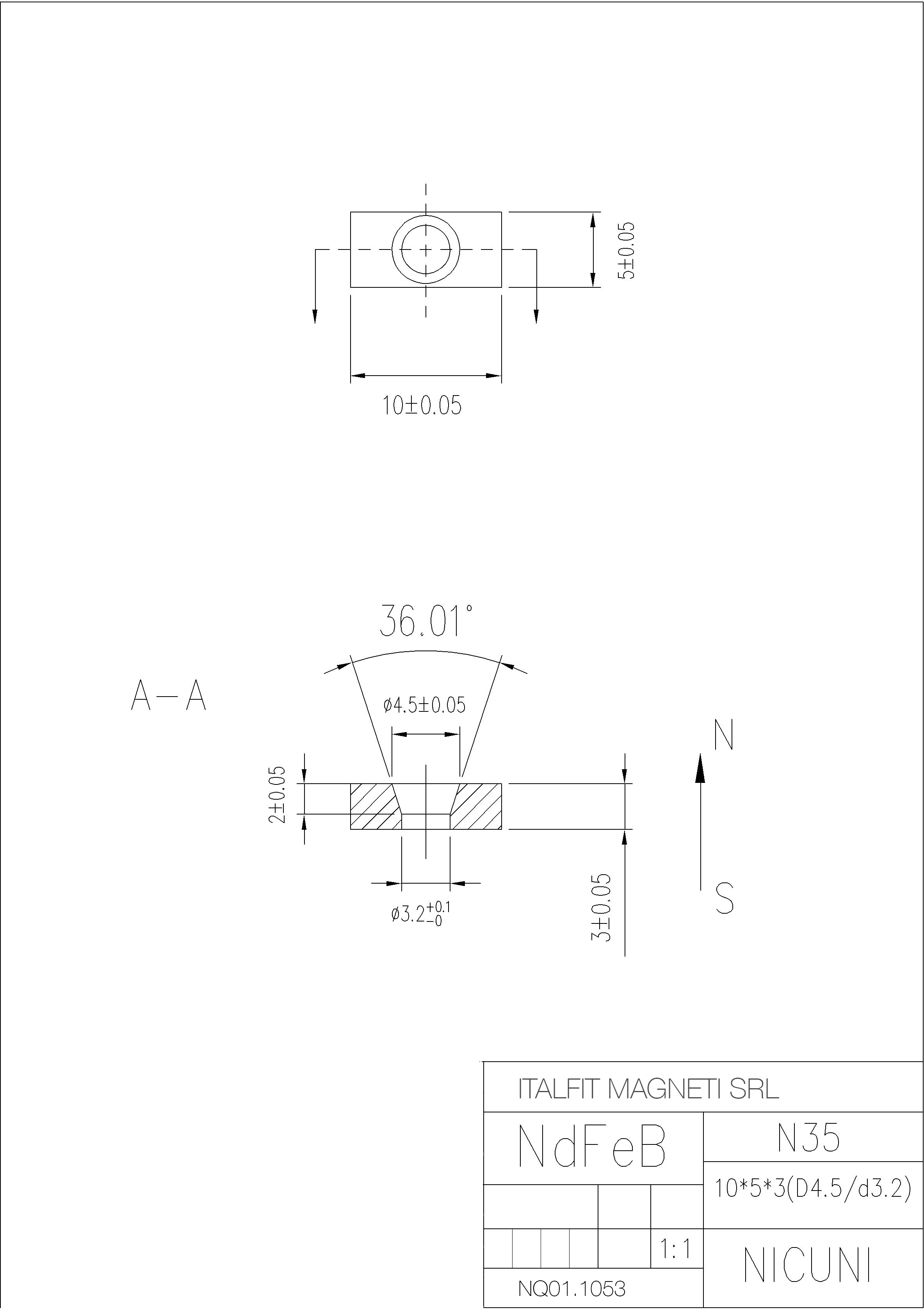

You can view and download the technical drawings of each product by clicking on the respective code highlighted in blue.

All measurements in millimeters (mm).

CODE	A	B	H	F	STRENGTH KG
NQ01.35NI00.10532.1	10	5	3	2,1
NQ01.35NI00.1063	10	6	3	3
NQ01.35NI00.15532.1	15	5	3	2,1	1,3
NQ01.35NI00.1553	15	5	3	3,2
NQ01.35NI00.1573	15	7	3	3,2	2,0
NQ01.35NI00.15155F4	15	15	5	4,3	5,3
NQ01.35NI00.2013	20	10	3	3,2	3,3

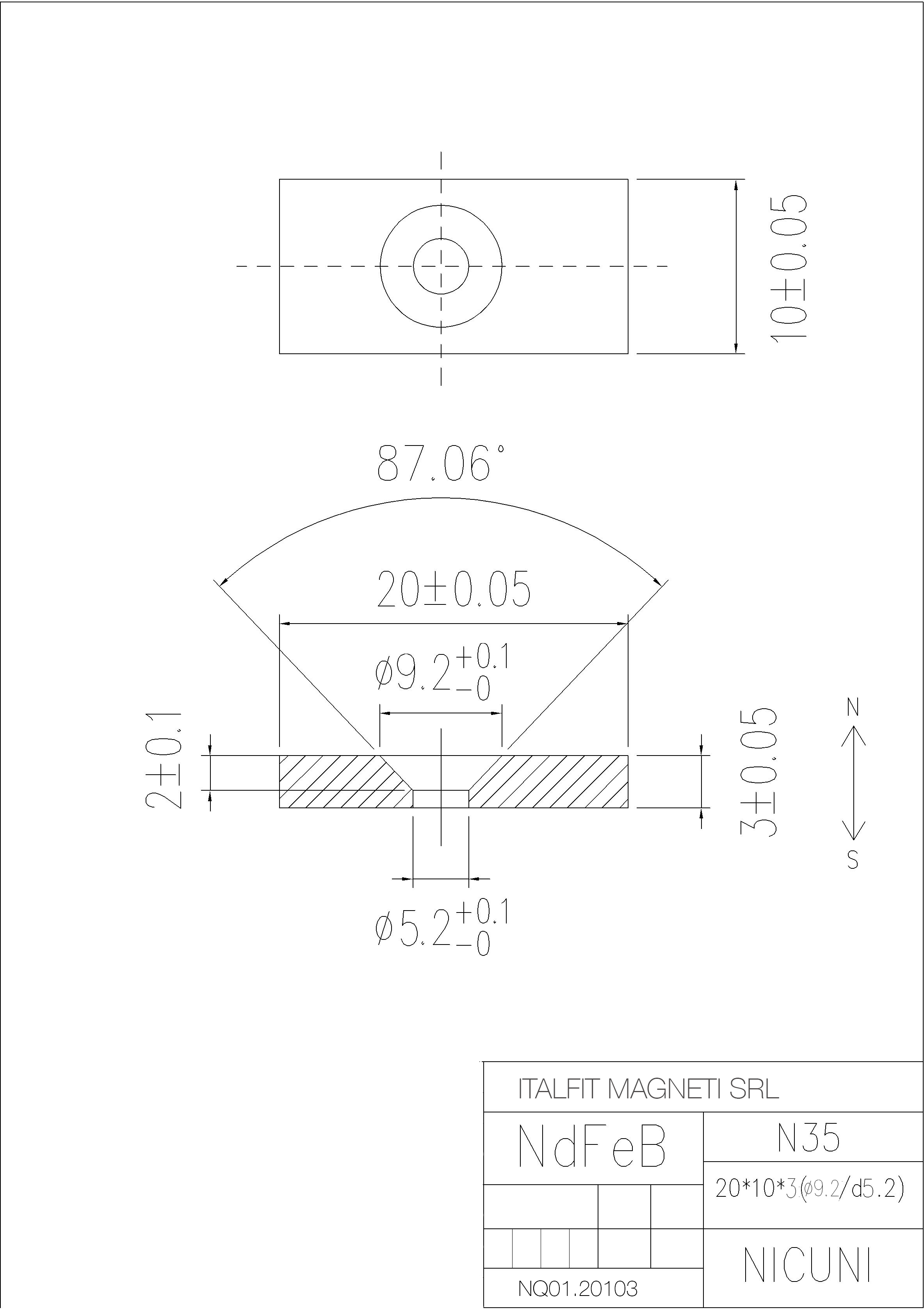

NQ01.35NI00.20103	20	10	3	5,2	3,3
NQ01.35NI00.20105	20	10	5	3,2
NQ01.35NI00.20135	20	13	3	5,2	3,3
NQ01.35NI00.2015	20	15	10	3,2	9,5
NQ01.35NI00.2025N	20	20	5	5	3,5
NQ01.35NI00.3015	30	10	5	3,2	5,6
NQ01.35NI00.30153.6	30	10	5	3,6	5,6
NQ01.35NI00.30155	30	10	5	5,2	5,6
NQ01.35NI00.301354	30	13	5	4	5,6

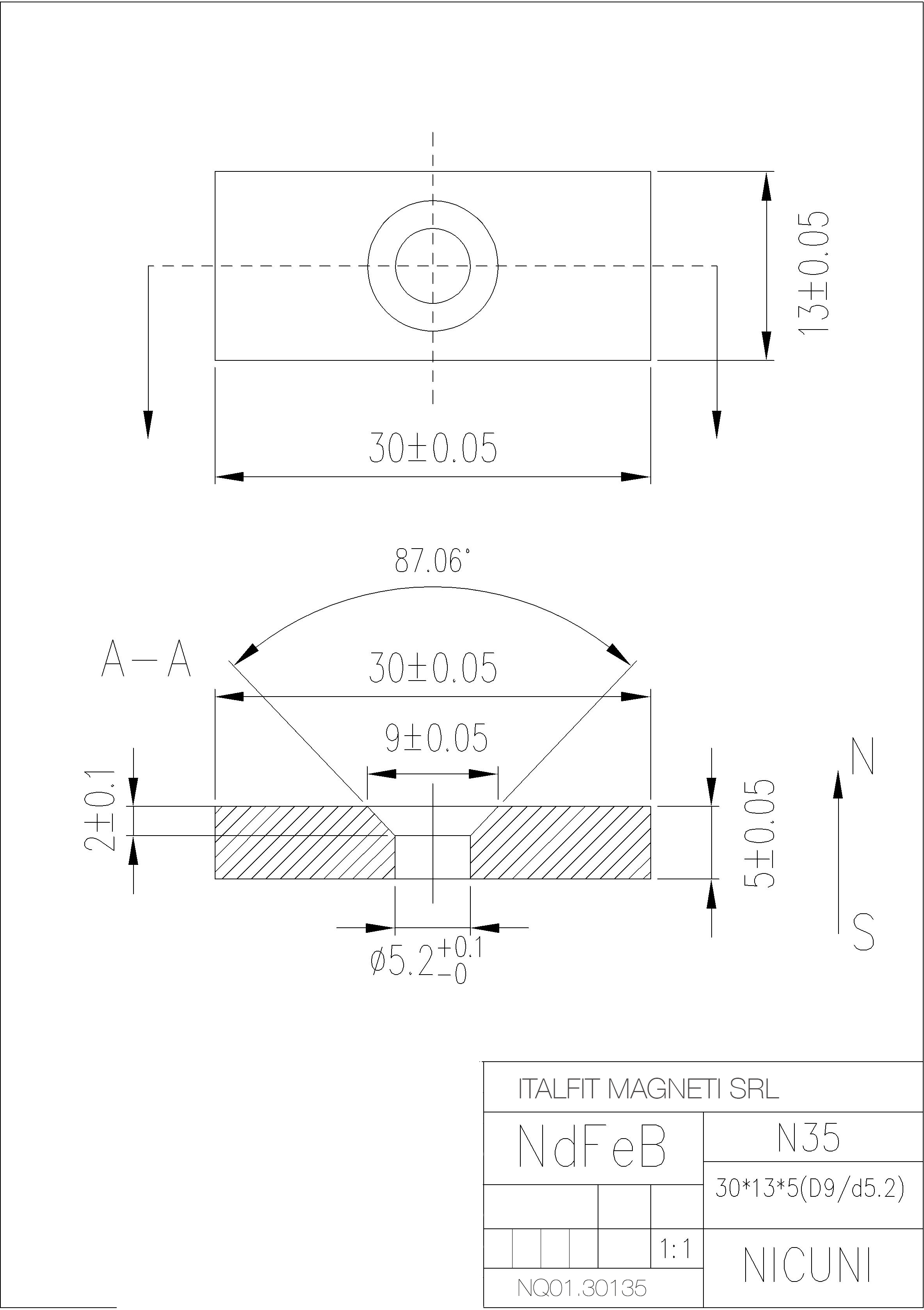

NQ01.35NI00.30135	30	13	5	5	6,0
NQ01.35NI00.301554	30	15	5	4,3

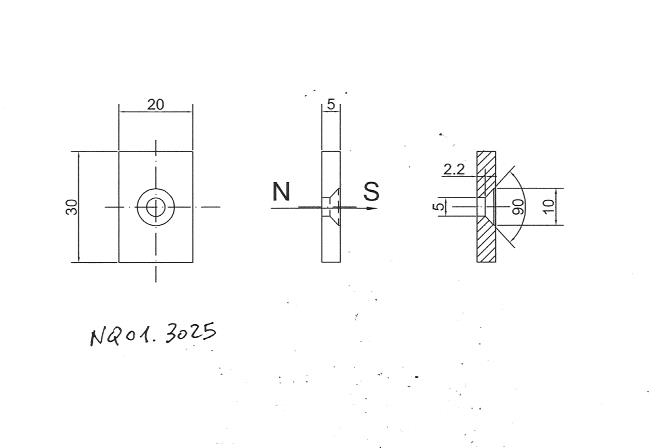

NQ01.35NI00.3025	30	20	5	5	9,5
NQ01.35NI00.3020.25	30	20,2	5	5,4
NQ01.35NI00.30305	30	30	5	4,5	12,5

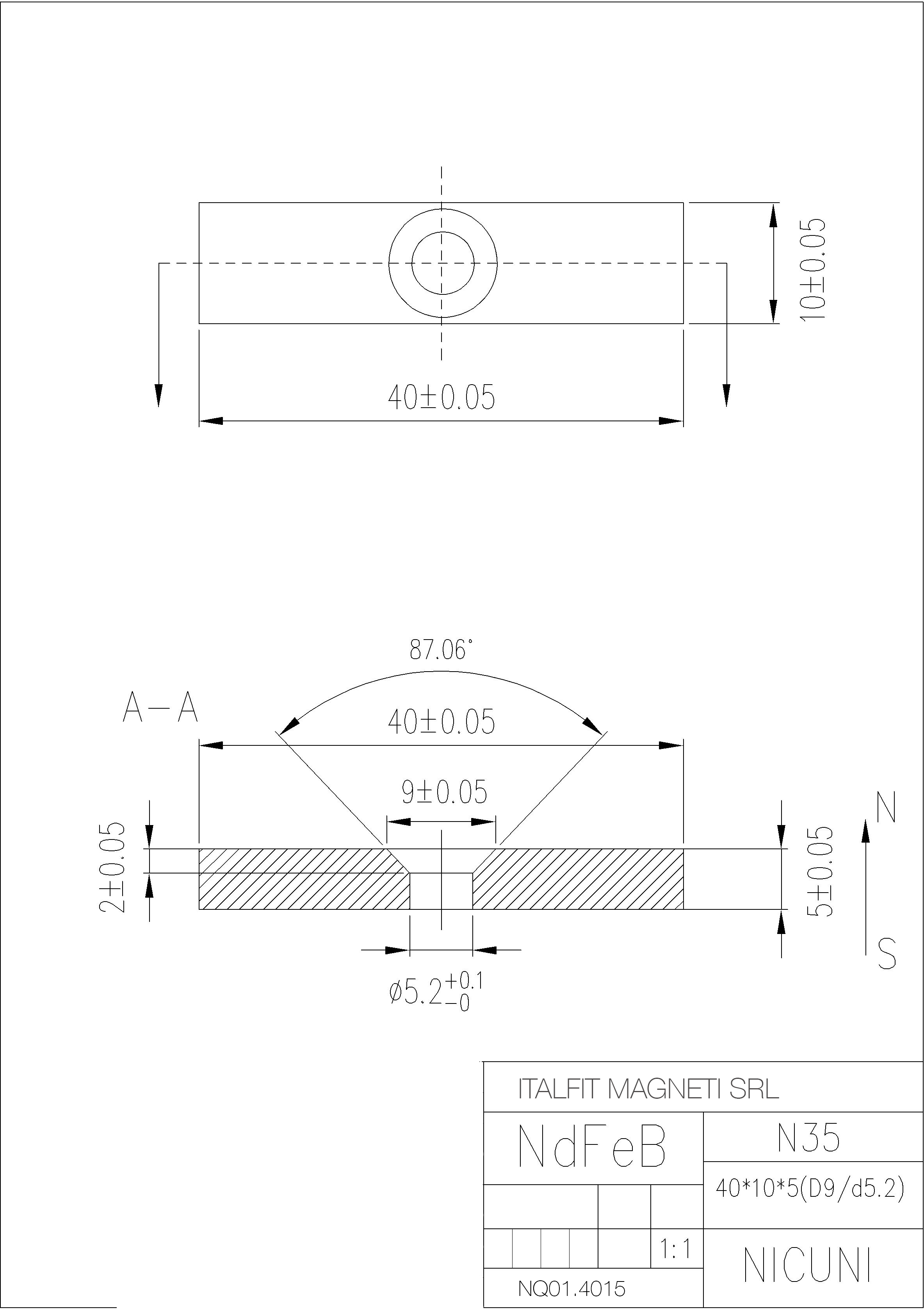

NQ01.35NI00.4015	40	10	5	5	8,0

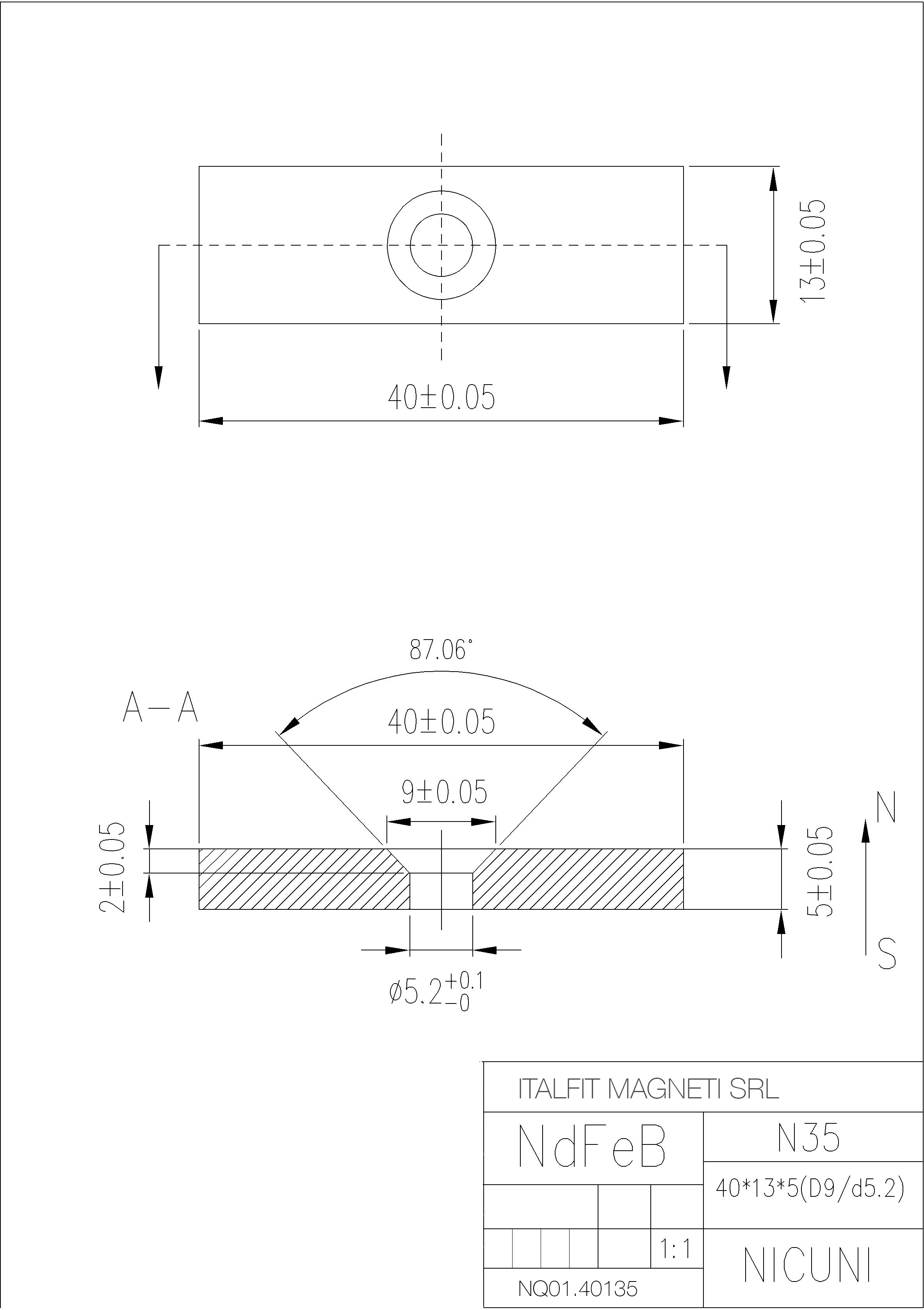

NQ01.35NI00.40135	40	13	5	5	10,2
NQ01.35NI00.401354	40	13	5	4,3	10,2

The maximum standard operating temperature is 80 °C.
On request, we can supply magnets capable of operating at higher temperatures, as indicated in the Materials Table.

Many of these sizes are also available in other variants, with different coatings and degrees of magnetization.

The force values given in the tables are the result of dynamometric tests performed with a 10 mm thick iron plate.
Any variations from this standard in the use may change the actual performance of the magnet.

It is always recommended to perform specific tests according to your application.
