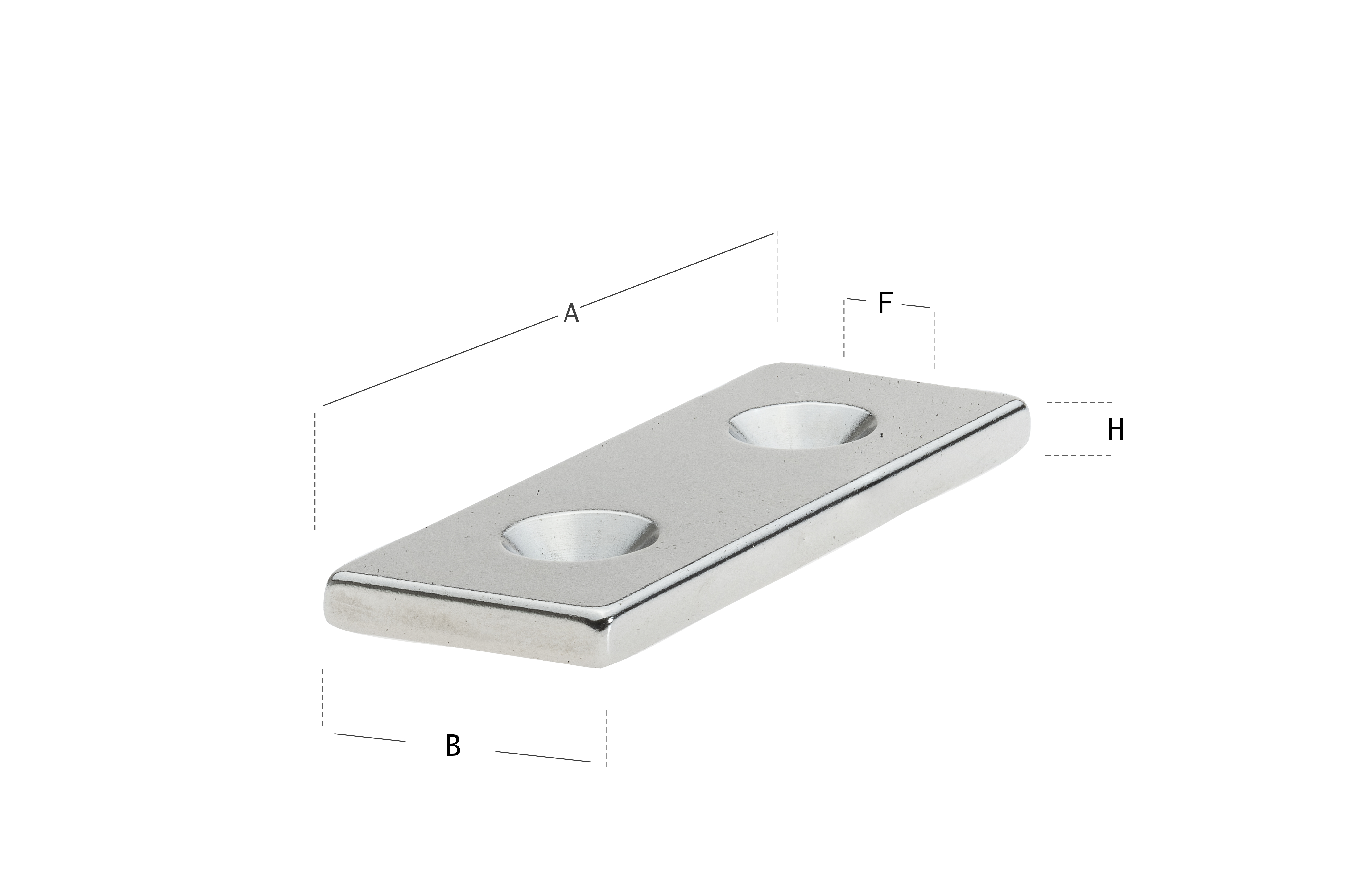

COUNTERSUNK HOLE magnets must be fastened with a screw.
We can provide the item with north or south pole on the countersunk side at customer's request.
We usually provide the goods on both polarity.

CODE A B H F STRENGTH KG
NQ03.35NI00.302033 30 20 3 3,2 6,50
NQ03.35NI00.402033 40 20 3 3,2 8,00
NQ03.35NI00.402044 40 20 4 4,2 11,00
NQ03.35NI00.50123 50 12 5 3,3 14,00
NQ03.35NI00.502044 50 20 4 4,5 16,00
NQ03.35NI00.602044 60 20 4 4,5 18,00
NQ03.35NI00.802044 80 20 4 4,5 22,00
NQ03.35NI00.8020106SUD 80 20 10 6,4 40,00
NQ03.35NI00.100123 100 12 6 3,3 28,00



Temperatura Massima 80 °C / Disponibile anche Tipo SH 150 °C. Tabella materiali



Tutte le misure sono in millimetri. Altre misure e forme a richiesta.
