Neodymium Magnetic System

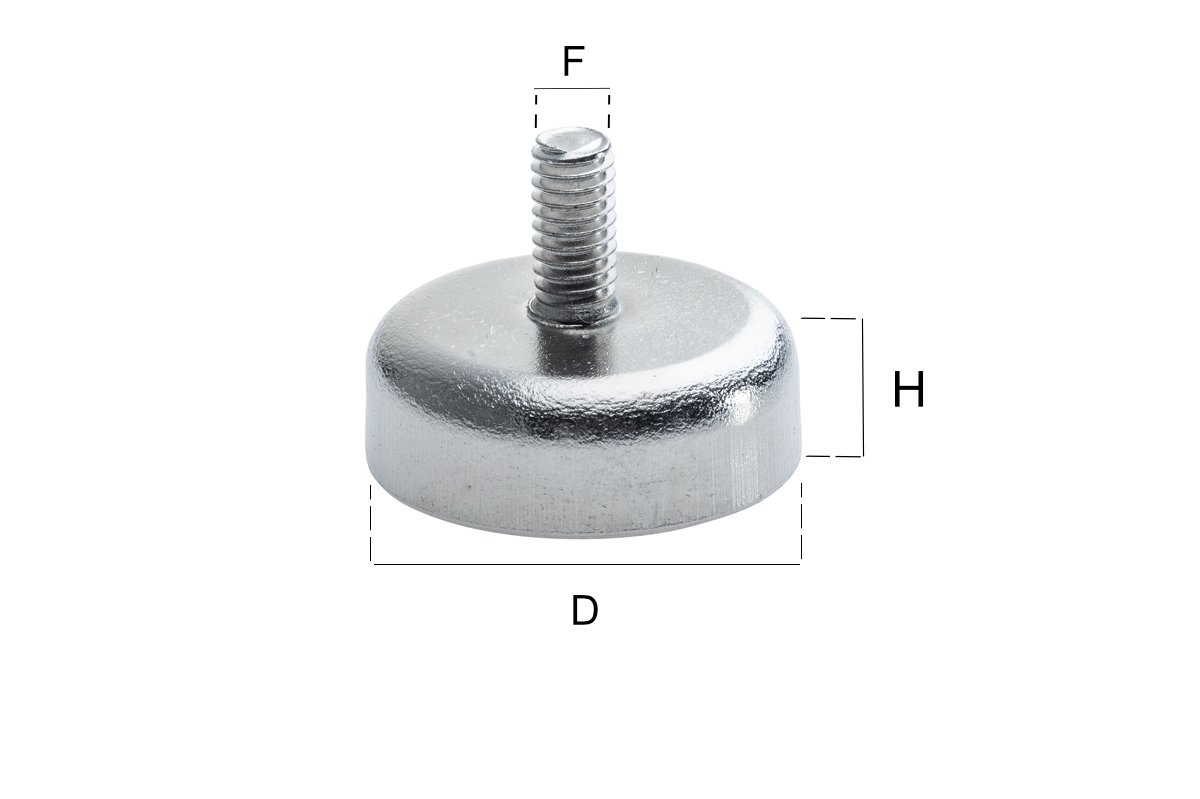

THREADED POT
SM32
SUPERCALAMITA Magnetic Systems offer the highest attraction, in small sizes and weights.
The strength of attraction is purely indicative and it could be different depending on the type of application and assembly.
| CODE | D | H | THREAD TYPE (F) | STRENGTH KG |
|---|---|---|---|---|
| SM32.35NI00.1205M3 | 12 | 5,5 | M3X8 | 4,40 |
| SM32.35NI00.1205M5 | 12 | 5,5 | M5X8 | 4,40 |
| SM32.35NI00.1205R M5 | 12 | 5,5 | M5X9 | 6 |
| SM32.35NI00.1645 | 16 | 4,5 | M5X8 | 8 |
| SM32.35NI00.1605 | 16 | 5,5 | M4X8 | 8,30 |
| SM32.35NI00.2006 | 20 | 6 | M5X10 | 14,50 |
| SM32.35NI00.2007 | 20 | 7 | M4X8 | 14 |
| SM32.35NI00.2508 | 25 | 8 | M5X9 | 25 |
| SM32.35NI00.3208 | 32 | 8 | M6X10 | 42 |
| SM32.35NI00.4811 | 48 | 11 | M8X12.5 | 81 |
| SM32.35NI00.7515 | 75 | 15 | M10X19 | 164 |
Max Temperature 80 °C / Also available SH Type 150 °C. Physical Magnet Data Sheet
All the measurements are in millimeters. Other sizes and shapes on request. |
