Neodymium Magnetic System

THREADED POT

SM14

The SM14 are made of a steel cup with a threaded stem and a neodymium magnet.

The threaded rod makes fastening the magnet quick and easy, without having to use glue or other adhesives.

The magnetic NdFeB alloy’s adhesive force is further enhanced by the steel cup, ensuring high performance even in the smallest sizes.

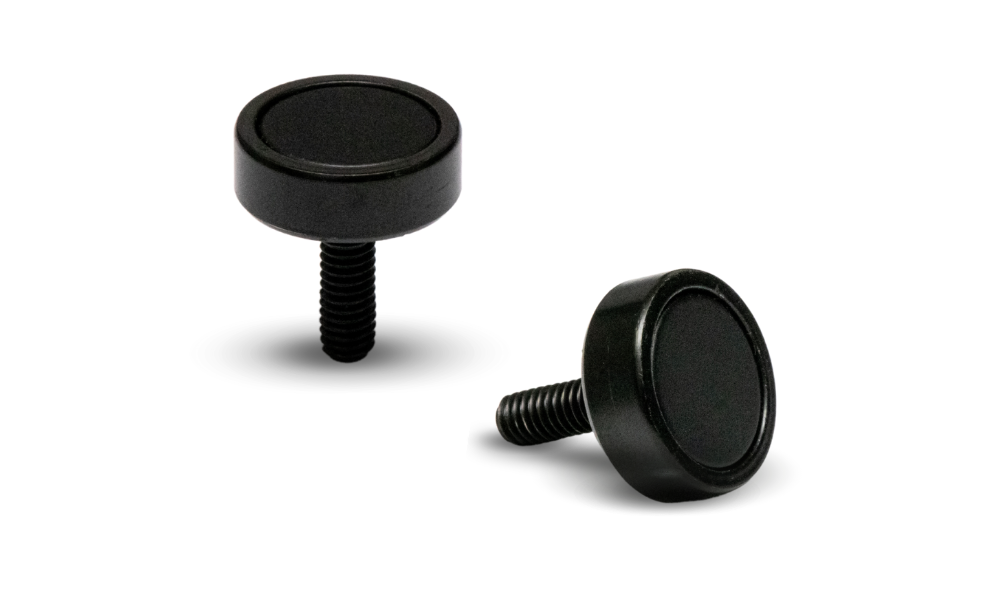

We introduced an all-black subseries, sporting a black coating on both magnet and cup, appreciated above all by the design and furniture industries. This product also has a more powerful, N45 grade magnet.

This makes these magnets particularly popular in various industrial sectors, such as furniture, automation, advertising, furnishing elements, thermoplastic molding, industrial equipment, etc.

Contact us for quick feedback on prices, availability, and customized products.
It is possible to view and download the technical drawings of each product by clicking on the respective code highlighted in blue.

All measures are in millimeters (mm).

CODE	D	H	THREAD TYPE (F)	STRENGTH KG
SM14.35NI00.1225	12	2,5	M4X8	2
SM14.40NI00.1225	12	2,5	M4X8	4
SM14.40NI00.1550	15	5	M4X12	9
SM14.35NI00.2060	20	6	M5X15	20
SM14.40NI00.2060	20	6	M5X15	21,50
SM14.35NI00.2254	22	5	M4X6	15
SM14.35NI00.2260	22	6	M5X15	17
SM14.35NI00.3012	30	12	M5X15	39
SM14.35NI00.3014	30	14	M5X15	42
SM14.35NI00.5010	50	10	M6X12	65
SM14.35NI00.5015	50	15	M6X12	75

CODE	D	H	THREAD TYPE (F)	STRENGTH KG
SM14.45NI00.1550	15	5	M4X12	9

The maximum standard operating temperature is 80 °C.
On request, we can supply magnets capable of operating at higher temperatures, as indicated in the Materials Table.

Many of these sizes are also available in other variants, with different coatings and degrees of magnetization.

The force values given in the tables are the result of dynamometric tests performed with a 10 mm thick iron plate.
Any variations from this standard in the use may change the actual performance of the magnet.

It is always recommended to perform specific tests according to your application.
