We designed SM08 in order to offer the max protection for the magnet. In this way it is isolated from agressive external agents (moisture, salt, water, acids...) and it's covered by a chrome case. This product is suitable in different conditions of use such as: industrial kitchens, office furniture, marine applications, shipbuilding, food products...
The strength of attraction is purely indicative and it could be different depending on the type of application and assembly.

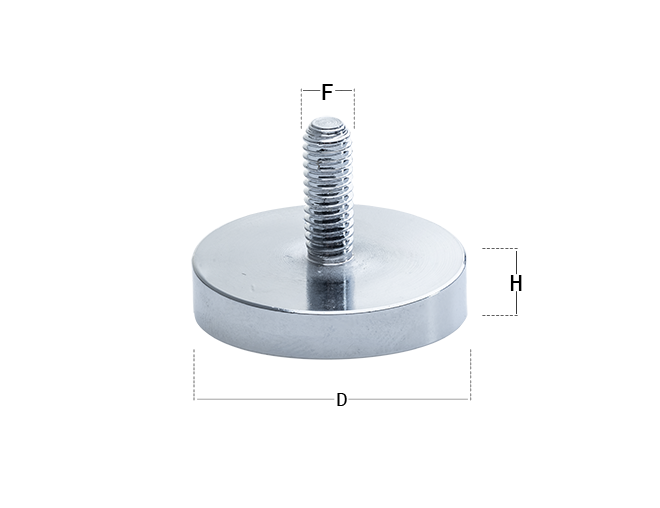

CODE	D	H	THREAD TYPE	STRENGTH KG
SM08.35NI00.1654	16	5	M4X10	4
SM08.35NI00.2254	22	5	M4X6	8
SM08.35NI00.2255	22	5	M5X15	6
SM08.35NI00.2261	22	6	M5X20	3,5
SM08.35NI00.2265	22	6	M5X15	10
SM08.35NI00.2268	22	6	M5X20	10
SM08.35NI00.22224	22	22	M4X6	11
SM08.35NI00.2595	25	9	M5X16	10
SM08.35NI00.3085	30	8	M5X16	18
SM08.35NI00.3011	30	11	M5X16	20
SM08.35NI00.301510	30	15	M5X10	21
SM08.35NI00.301510SCR (with line)	30	15	M5X10	21
SM08.35NI00.301515	30	15	M5X15	21
SM08.35NI00.3460	34	6	M6X15	21
SM08.35NI00.3512	35	12	M6X15	30
SM08.35NI00.4010	40	10	M8X15	40

News: new SM08 series is now available in stainless steel resistant to the most aggressive external agents, humidity and water

We have designed three different sizes made by a stainless steel cup and a resin magnet in order to guarantee a good seal and resistance even in unfavorable conditions.

CODE	D	H	THREAD TYPE	STRENGTH KG
SM08.52NI00.2265	22	6	M5X15	2,2
SM08.52NI00.2595	25	9	M5X16	4,7
SM08.52NI00.3085	30	8	M5X16	3

Max Temperature 60 °C. Physical Magnet Data Sheet

All the measurements are in millimeters. Other sizes and shapes on request.
