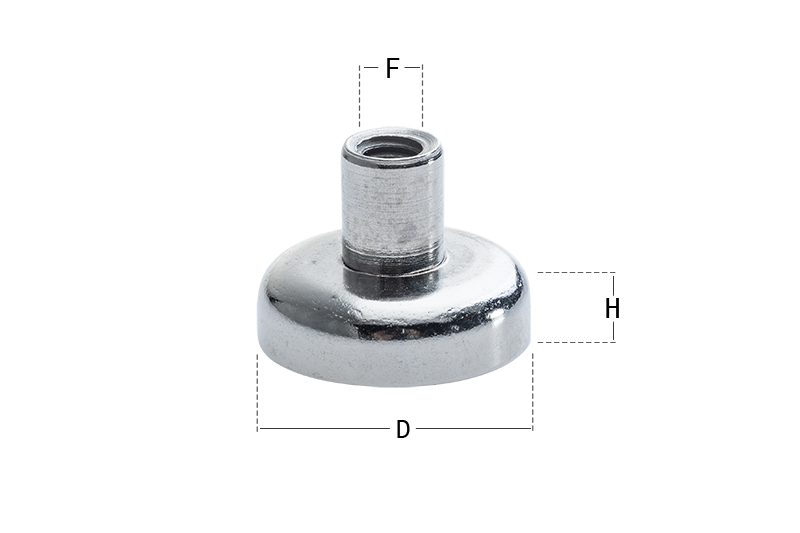

The SM33 is equipped with a female threaded rod.
They can be directly attached to any support by means of a threaded rod, or equipped with different attachment systems, such as eyelets or hooks.

This makes these magnets particularly popular in various industrial sectors, such as furniture, automation, advertising, furniture, installations, industrial equipment, etc.

Contact us to get quick feedback on prices, availability and customized products.
You can view and download the technical drawings of each product by clicking on the respective code, highlighted in blue.

All measures are in millimeters (mm).

CODE D H THREAD M (F) STRENGTH KG
SM33.35NI00.1605 16 5 M4 8,30
SM33.35NI00.2007 20 7 M4 16,00
SM33.35NI00.2508 25 8 M5 25,00
SM33.35NI00.3208 32 8 M6 43,00
SM33.35NI00.4209 42 9 M8 74,00

The maximum standard operating temperature is 80 °C.
On request, we can supply magnets capable of operating at higher temperatures, as indicated in the Materials Table.

Many of these sizes are also available in other variants, with different coatings and degrees of magnetization.

The force values given in the tables are the result of dynamometric tests performed with a 10 mm thick iron plate.
Any variations from this standard in the use may change the actual performance of the magnet.

It is always recommended to perform specific tests according to your application.
