Neodymium Magnetic System

THREADED HOLE MAGNET

SM23

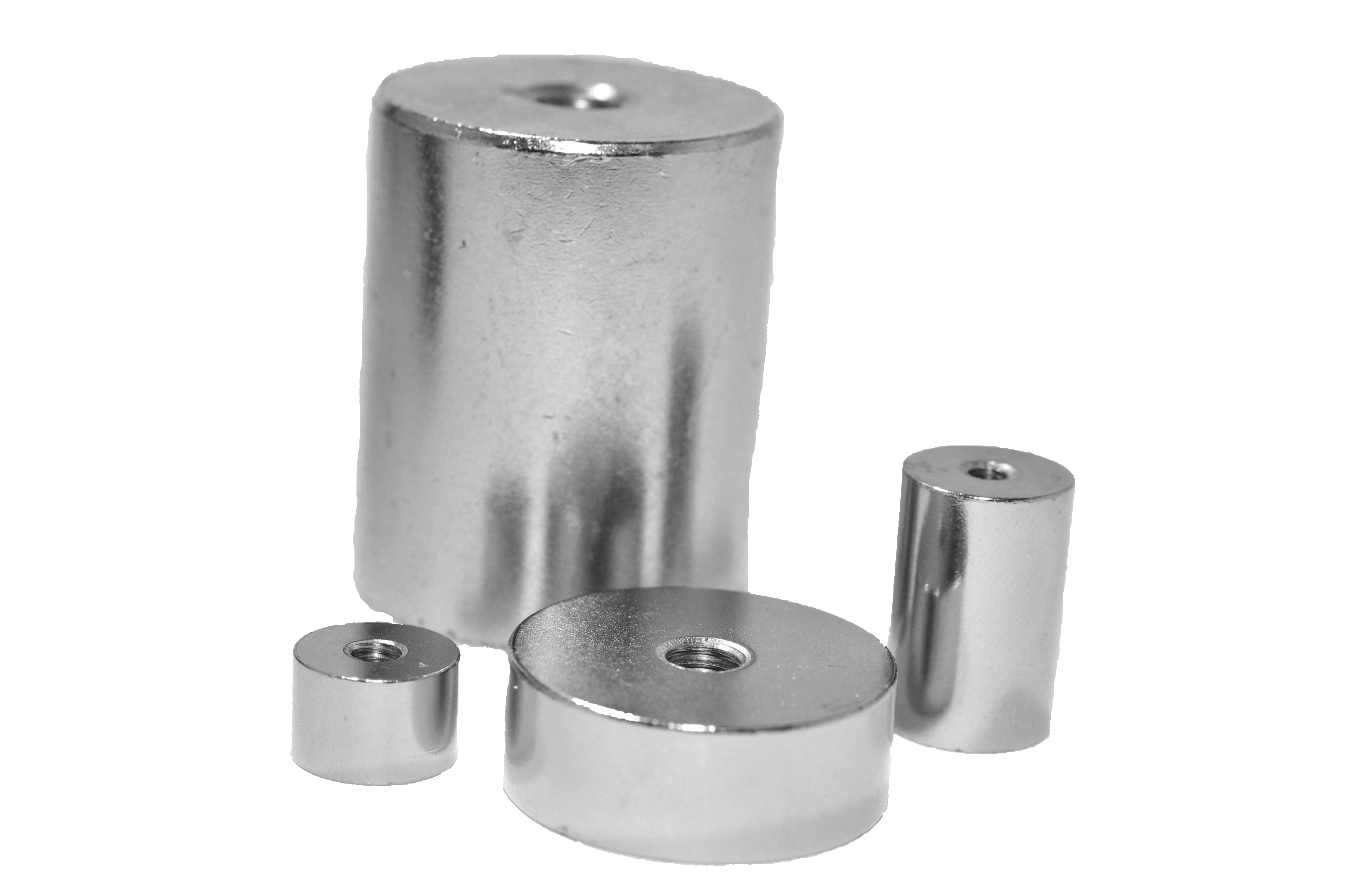

The SM23, also called "Supermagnets", are made of a steel cup and a grade N42 neodymium magnet, which guarantee high performance even in the smallest dimensions.

This makes these magnets particularly popular in various industrial sectors, such as furniture, automation, advertising, furnishing elements, thermoplastic molding, industrial equipment, etc.

Contact us to get quick feedback on prices, availability and customized products.
You can view and download the technical drawings of each product by clicking on the respective code, highlighted in blue.

All measures are in millimeters (mm).

CODE	D	H	HOLE	HEIGHT HOLE	STRENGTH KG
SM23.42NI00.663M3	6	6	M3	3	1
SM23.42NI00.620M3	6	20	M3	5	0,7
SM23.42NI00.853M3	8	5	M3	2	1,6
SM23.42NI00.820M3	8	20	M3	5	1,5
SM23.42NI00.128M4	12	8	M4	4	5,5
SM23.42NI00.1020M3	10	20	M3	7	2,3
SM23.42NI00.1320M3	13	20	M3	7	6,3
SM23.42NI00.1620M4	16	20	M4	7	9,5
SM23.42NI00.198M5	19	8	M5	4	16
SM23.35NI00.2010M3	20	10	M3	5,5	10
SM23.42NI00.2025M5	20	25	M5	9	18,5
SM23.42NI00.2585M5	25	8	M5	5	31
SM23.42NI00.276M6	27	6	M6	3,5	40
SM23.42NI00.2810M6	28	10	M6	5	45
SM23.42NI00.2820M6	28	20	M6	10	31
SM23.42NI00.3240M8	32	40	M8	12	56
SM23.42NI00.3810M6	38	10	M6	6	75
SM23.42NI00.4040M8	40	40	M8	12	83

The maximum standard operating temperature is 80 °C. On request, we can supply magnets capable of operating at higher temperatures, as indicated in the Materials Table.

Many of these sizes are also available in other variants, with different coatings and degrees of magnetization.

The force values given in the tables are the result of dynamometric tests performed with a 10 mm thick iron plate.
Any variations from this standard in the use may change the actual performance of the magnet.

It is always recommended to perform specific tests according to your application.
