Neodymium Magnetic System

THREADED HOLE MAGNET

SM07-2 POLES

The SM07 Magnetic Systems with blind threaded hole incorporate two magnets of opposite polarity on the same face.
This, together with the deep brass cup, makes them very versatile especially for magnetic closures, being the magnet always able to be coupled, regardless of orientation. This configuration also develops a higher pull force than other solutions.

This makes these magnets particularly popular in various industrial sectors, such as furniture, automation, advertising, furnishing elements, thermoplastic molding, industrial equipment, etc.

Contact us to get quick feedback on prices, availability and customized products.
You can view and download the technical drawings of each product by clicking on the respective code, highlighted in blue.

All measures are in millimeters (mm).

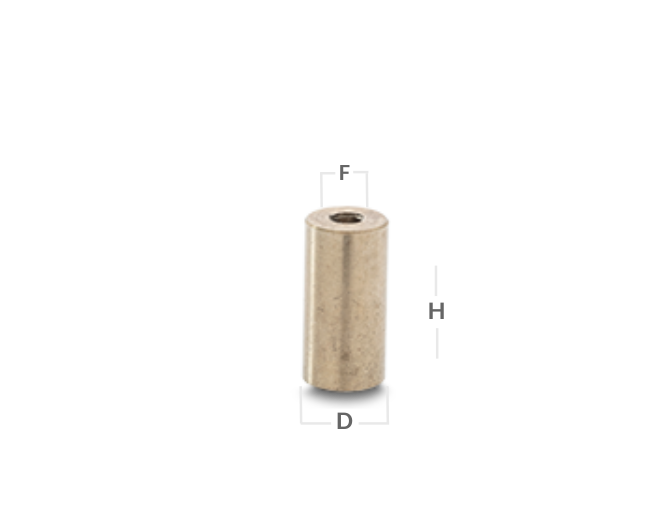

CODE	D	H	THREAD M (F)	STRENGTH KG
SM07.35NI00.6203.M3	6	20	M3X9	1
SM07.35NI00.8203.M3	8	20	M3X9	1,5
SM07.35NI00.1020.M4	10	20	M4X7	3
SM07.35NI00.1320.M5	13	20	M5X7.5	5,5
SM07.35NI00.1620.M6	16	20	M6X4	11
SM07.35NI00.2227.M6	22	27	M6	23
SM07.35NI00.2535.M6	25	35	M6X16	35

The maximum standard operating temperature for resin-coated products is 60 °C.
On request, we can supply uncoated magnets capable of operating at higher temperatures, as indicated in the Materials Table.

Many of these sizes are also available in other variants, with different coatings and degrees of magnetization.

The force values given in the tables are the result of dynamometric tests performed with a 10 mm thick iron plate.
Any variations from this standard in the use may change the actual performance of the magnet.

It is always recommended to perform specific tests according to your application.
