Neodymium Magnetic System

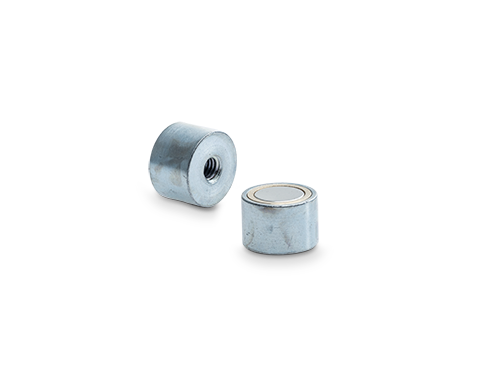

THREADED HOLE MAGNET

SM05

The SM05 with blind threaded hole were among the first Neodymium Magnetic Systems introduced in the catalogue.

Their peculiarity is the pressure fixing of the magnetic core by means of a brass ring and without the use of glues, a feature which gives the magnet greater structural integrity.

The steel cup, combined with the N52 magnet, maximizes the force of attraction even in the smallest sizes.
These characteristics make them widely used in many sectors: furniture industry, automation, advertising, thermoplastic molding, industrial equipment, etc.

Contact us to get quick feedback on prices, availability and customized products.
You can view and download the technical drawings of each product by clicking on the respective code, highlighted in blue.

All measures are in millimeters (mm).

CODE	D	H	THREAD M (F)	HOLE HEIGHT	STRENGTH KG
SM05.52ZN00.663.M3	6	6	M3	4	1,30
SM05.52ZN00.853.M3	8	5	M3	3	1,2
SM05.52ZNCE.1284.M4	12	8	M4	4	4
SM05.52ZNCE.1985.M5	19	8	M5	5	14
SM05.52ZNCE.1985.M6	19	8	M6	5	14
SM05.52ZNCE.2585.M5	25	8	M5	5.5	24
SM05.52ZNCE.2766.M6	27	6,5	M6	4	30
SM05.52ZNCE.2810.M6	28	10	M6	5	35
SM05.52ZNCE.2820.M6	28	20	M6	16	40
SM05.35NI00.3810.M6	38	10	M6	6.5	50

The maximum standard operating temperature is 80 °C.
On request, we can supply magnets capable of operating at higher temperatures, as indicated in the Materials Table.

Many of these sizes are also available in other variants, with different coatings and degrees of magnetization.

The force values given in the tables are the result of dynamometric tests performed with a 10 mm thick iron plate.
Any variations from this standard in the use may change the actual performance of the magnet.

It is always recommended to perform specific tests according to your application.
