The SM31 series are made to be used with cylindrical screws, much more suitable to ensure a stable tightening for particular conditions of use. Installation is quick and easy, without the need for glue or other adhesives.
The magnetic NdFeB alloy’s adhesive force is further enhanced by the steel cup, ensuring high performance even in the smallest sizes.

This makes these magnets particularly popular in various industrial sectors, such as furniture, automation, advertising, furnishing elements, thermoplastic molding, industrial equipment, etc.

Contact us to get a quick feedback on prices, availability and customized products.
You can view and download the technical drawings of each product by clicking on the respective code highlighted in blue.

All measures are in millimeters (mm).

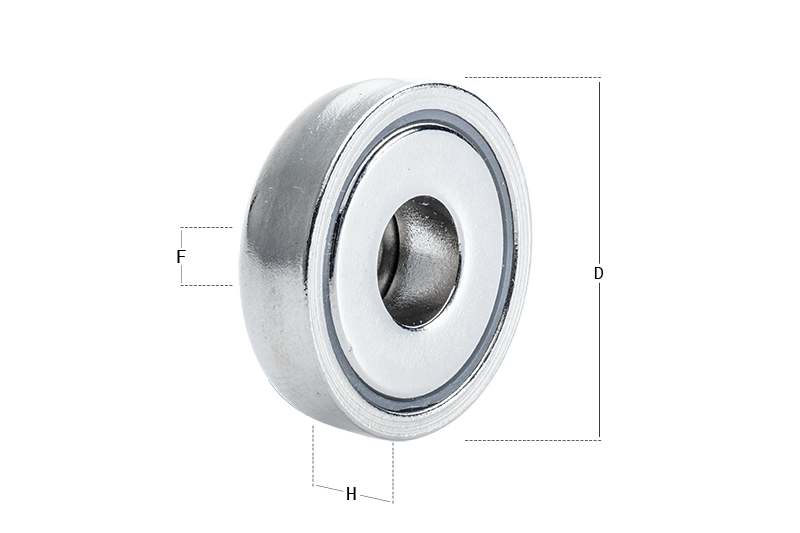

CODE D H THREAD M (F) STRENGTH KG
SM31.35NI00.2508 25 8 5.5/9 19
SM31.35NI00.3208 32 8 5.5/9 45
SM31.35NI00.3608 36 8 6.5/11 49
SM31.35NI00.4811 48 11 8.5/15 63
SM31.35NI00.6015 60 15 8.5/15 95

The maximum standard operating temperature is 80 °C.
On request, we can supply magnets capable of operating at higher temperatures, as indicated in the Materials Table.

Many of these sizes are also available in other variants, with different coatings and degrees of magnetization.

The force values given in the tables are the result of dynamometric tests performed with a 10 mm thick iron plate.
Any variations from this standard in the use may change the actual performance of the magnet.

It is always recommended to perform specific tests according to your application.
