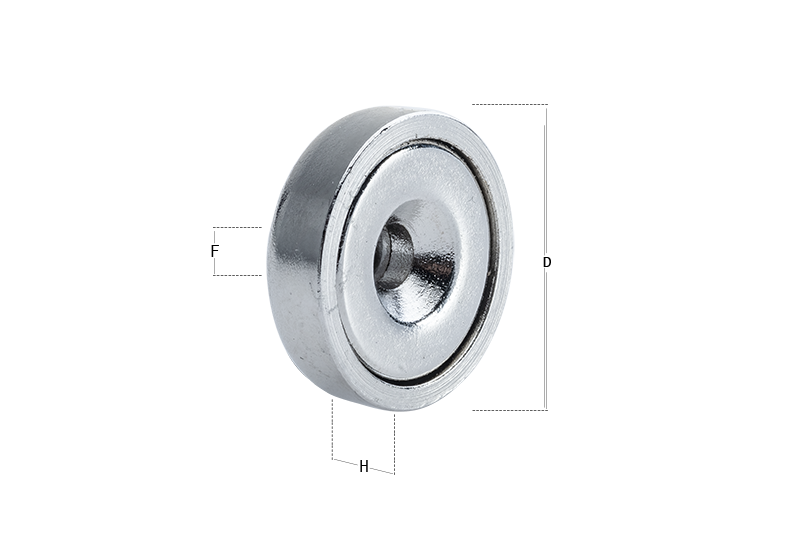

The SM30 series with countersunk hole is composed of a steel cup with countersunk hole and a neodymium magnet.
The countersunk through hole makes attaching the magnet with screws quick and easy, without having to use glue or other adhesives.
The magnetic NdFeB alloy’s adhesive force is further enhanced by the steel cup, ensuring high performance even in the smallest sizes.

This makes these magnets particularly popular in various industrial sectors, such as furniture, automation, advertising, furnishing elements, thermoplastic molding, industrial equipment, etc.

Contact us to get a quick feedback on prices, availability and customized products.
You can view and download the technical drawings of each product by clicking on the respective code highlighted in blue.

All measures are in millimeters (mm).

CODE	D	H	THREAD M (F)	STRENGTH KG
SM30.35NI00.1605	16	5	3.5	7.5
SM30.35NI00.2007	20	7	4.5	18
SM30.35NI00.2508	25	8	5.5	22
SM30.35NI00.3208	32	8	5.5	42
SM30.35NI00.3608	36	8	6.5	46
SM30.35NI00.4209	42	9	6.5	70
SM30.35NI00.4811	48	11	8.5	88
SM30.35NI00.6015	60	15	8.5	130
SM30.35NI00.7515	75	15	10.5	200

The maximum standard operating temperature is 80 °C.
On request, we can supply magnets capable of operating at higher temperatures, as indicated in the Materials Table.

Many of these sizes are also available in other variants, with different coatings and degrees of magnetization.

The force values given in the tables are the result of dynamometric tests performed with a 10 mm thick iron plate.
Any variations from this standard in the use may change the actual performance of the magnet.

It is always recommended to perform specific tests according to your application.
