ALNICO MAGNETIC SYSTEMS

Alnico Magnetic Systems have been introduced to satisfy the ever-growing demand for high temperature resistant materials.
Among the peculiarities of this magnetic material is the highest maximum operating temperature of all permanent magnets – 650 °C, making Alnico the only candidate for very high-temperature applications.
In contrast, their attraction force is rather small compared to NdFeB or SmCo magnets and they are more susceptible to demagnetization when in contact with very intense magnetic fields.

The integration with steel cups, however, allows the magnetic field to concentrate on the free surface of the magnet, thus enhancing its adhesive force.
This type of magnet is pressed into the cup and then lathed to obtain a perfectly level surface. They are the only magnets that can be machined without damage or risks of demagnetization.

The main fields in which Alnico is used range from the manufacture of relays, sensors, laboratory equipment, magnetic boards, loudspeakers, pick-ups for guitars, ovens, etc.

The following is a brief overview of the products and their characteristics:

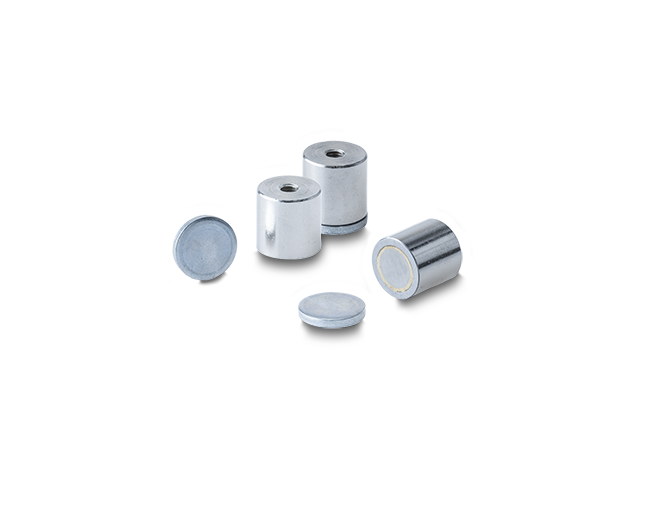

SM04: steel cup with blind threaded hole on the base;

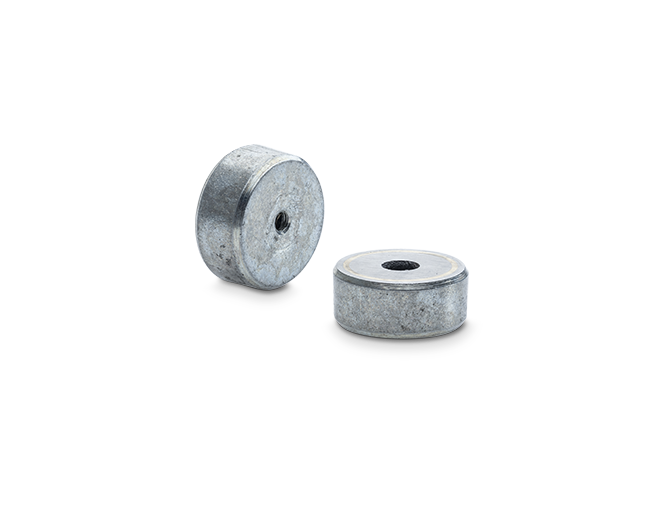

SM06: steel cup with threaded through hole.

For any request of customized magnets, please contact us directly to receive a quote with delivery time.
