The max strength (in kg) is indicated at Air gap Zero. The electromagnet's surface is in direct contact with the iron's one.
The surface of the iron piece is created with the minimal roughness. Its thickness is 10 mm. At the same thickness and roughness we can obtain decreasing magnetic foces with Iron (Fe 35), Steel 60, Malleable Cast Iron, Cast Iron and Steel quick.

The electromagnets are suitable to move and keep Iron pieces, for applications in complex systems, for positioning and robotization. Execution standard at 24 V DC. Other voltages available on request.Class F insulation. Cable Output power/ lower side.

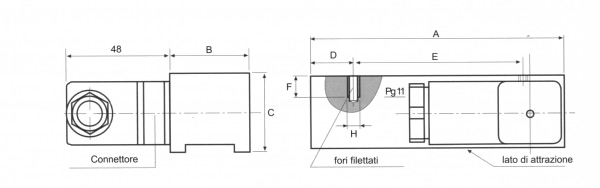

TYPE A B C D E F H HOLES W consume MAX Strength (KG) Weight kg
EMP0.000000.301520M 30 15 20 15 / / M4 1 5 5 0,05
EMP0.000000.302020M 30 20 20 15 / / M4 1 5 8,2 0,07
EMP0.000000.125R 125 35 34 25 50 10 M6 2 10 45 0,9
EMP0.000000.175R 175 35 34 25 50 10 M6 3 14 85 1
EMP0.000000.225R 225 35 34 25 50 10 M6 4 18 110 1,5
EMP0.000000.425R 425 35 34 25 50 10 M6 8 30 250 2,8
EMP0.000000.525R 525 35 34 25 50 10 M6 10 45 310 3,5
EMP0.000000.625R 625 35 34 25 50 10 M6 12 53 395 4,5

The EMP.0000.301520M and EMP.0000.302020M models are without connector.

All the measures are in millimteres.
The strength of attraction is purely indicative and it could be different depending on the type of application and assembly.
