The S20050 electromagnets are designed with a robust plastic mounting base and an ABS cover, which is a resistant, lightweight and modern material. This combination makes them perfect for environments where elegance and functionality are top priorities.

It is normally supplied with an S01 counterplate. Moreover, it is equipped with a release button and a circuit with protective diodes.

The standard operating voltage is 24 V DC, and the electrical connection is via terminal block.

Contact us to get quick feedback on prices, availability, variants, and accessories.

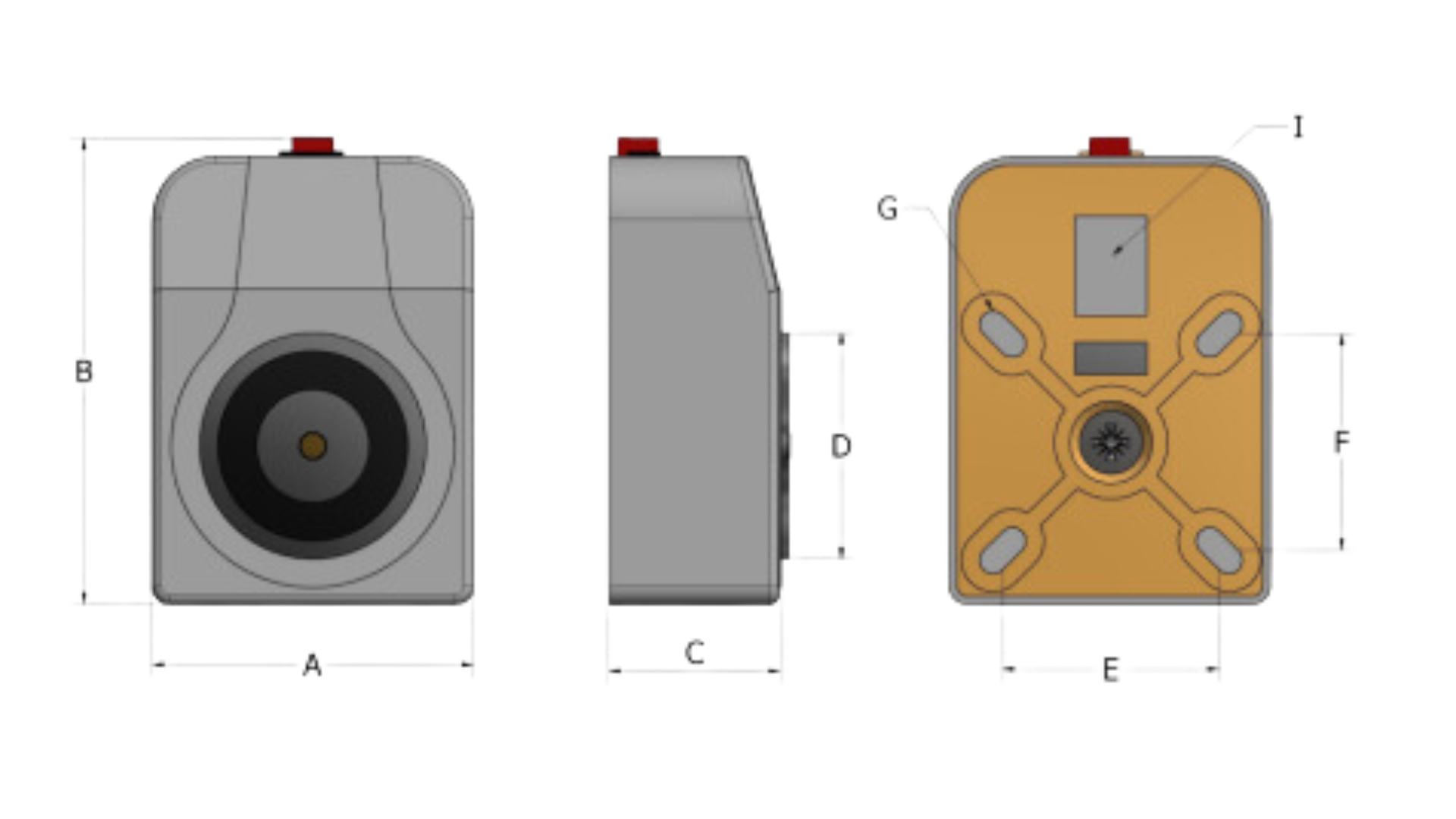

All measures are in millimeters (mm).

CODE A B C D E F G I WEIGHT KG
EMPT.S20500.7210540 72 105 40 50 52 52 6,5X12 16X22 0,36
EMPT.S21100.7210552 72 105 52 60 52 52 6,5X12 16X22 0,65

Contact us for more information on voltage, force, current consumption (mA), protection circuit, and door status.
