The max strength (in Kg) is indicated at Air gap Zero. The electropermanent's surface is in contact with the iron's one.
The surface of the iron piece is created with the minimal roughness. Its thickness is 10 mm.

At the same thickness and roughness we can obtain decreasing magnetic foces with Iron (Fe 35), Steel 60, Malleable Cast Iron, Cast Iron and Steel quick.

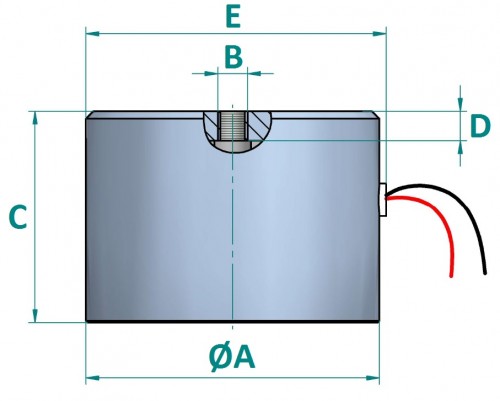

TYPE A B C D E MAX STRENGTH (KG) Weight kg
EMPP.000000.VP-20 20 M3 25 6 26 3,97 0,040
EMPP.000000.VP-30 30 M4 32.5 10 35.2 18.4 0,13
EMPP.000000.VP-40 40 M5 42 8 42.7 28 0,28
EMPP.000000.VP-50 50 M5 42.8 6 52.5 62 0,44
EMPP.000000.VP-65 65 M8 45 10 67 124.4 0,74
EMPP.000000.VP-100 100 M10 67 10 102 230 3,00
EMPP.000000.VP-150 150 M16 65 15 152 225 7,10

All the measures are in millimeters.
The strength of attraction is purely indicative and it could be different depending on the type of application and assembly.
