The max strength (in Kg) is indicated at Air gap Zero. The electropermanent's surface is in contact with the iron's one.
The surface of the iron piece is created with the minimal roughness. Its thickness is 10 mm.

At the same thickness and roughness we can obtain decreasing magnetic foces with Iron (Fe 35), Steel 60, Malleable Cast Iron, Cast Iron and Steel quick.

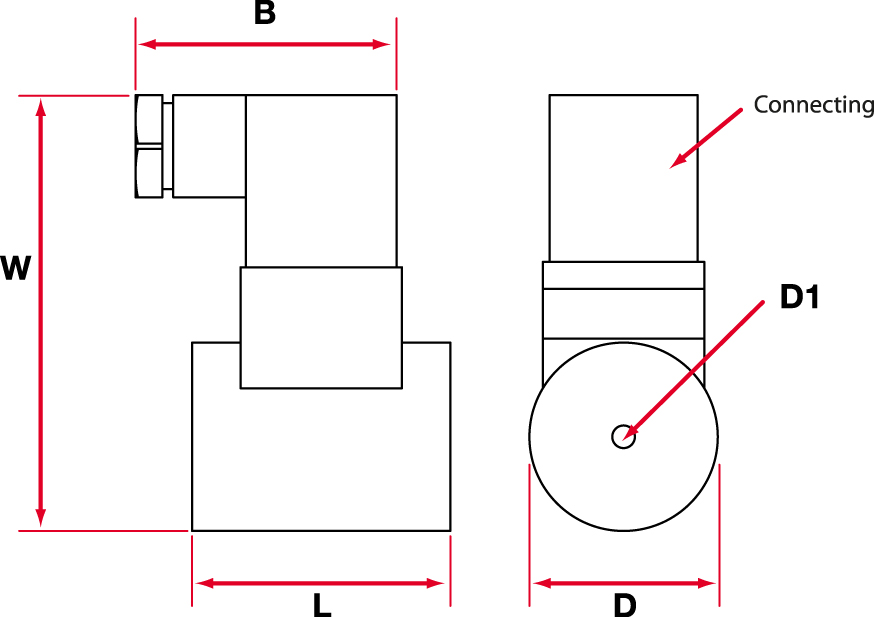

TYPE D D1 L W B W consume Strenght MAX KG Weight kg
ECLP.000000.VP-35 35 M5 48 78 50 5,5 25.5 0,352
ECLP.000000.VP-35.240 35 M5 48 81 50 5,5 25.5 0,354
ECLP.000000.VP-50 50 M5 63 97 50 8,5 51 0,874
ECLP.000000.VP-50.240 50 M5 63 97 50 8,5 51 0,880

All the measures are in millimeters.
