The max strength (in kg) is indicated  at Air gap Zero. The electromagnet's surface is in contact with the iron's one.
The surface of the iron piece should be created with the minimal roughness. The max strength of attraction is obtained with an iron matching part, 10 mm thick.

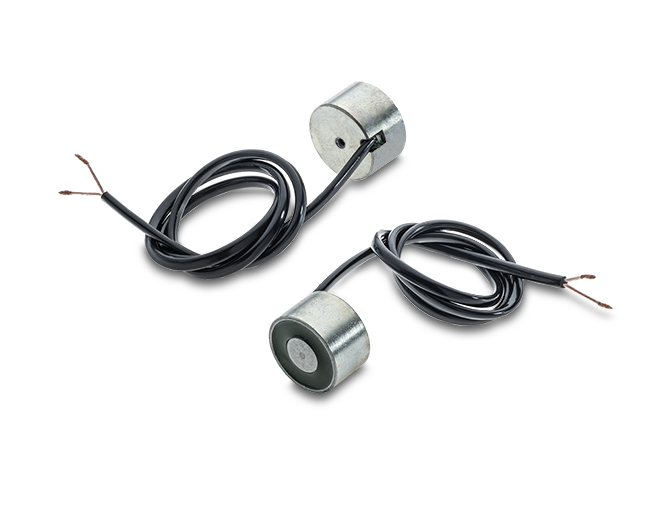

The electromagnets are suitable to move and keep Iron pieces, for applications in complex systems, for positioning and robotization. Execution standard at 24 V DC. Other voltages available on request.Class F insulation. Cable Output power/ lower side.



TYPE D1 H D2 F CABLE LENGTH CABLE OUTLET W consume  MAX Strength (KG) Weight (KG)
EMP0.000000.15C 15 20 6 M4X14 100 Lateral 1,5 2 0,03
EMP0.000000.20C 20 20 9 M5X10 200 Lateral 2,5 4 0,04
EMP0.000000.30C 30 18 9 M4X10 200 Rear 3 7 0,1
EMP0.000000.40C 40 22 16 M5X10 200 Rear 5 30 0,2
EMP0.000000.50C 50 25 19 M6X15 200 Rear 6,5 60 0,3
EMP0.000000.60C 60 28 25 M6X18 200 Rear 8 90 0,6
EMP0.000000.80C 80 40 34 M8X20 200 Lateral 15 200 1,2
EMP0.000000.100C 100 60 38 M10X20 300   20 300 2,2

All the measures are in millimeters.
The strength of attraction is purely indicative and it could be different depending on the type of application and assembly.
