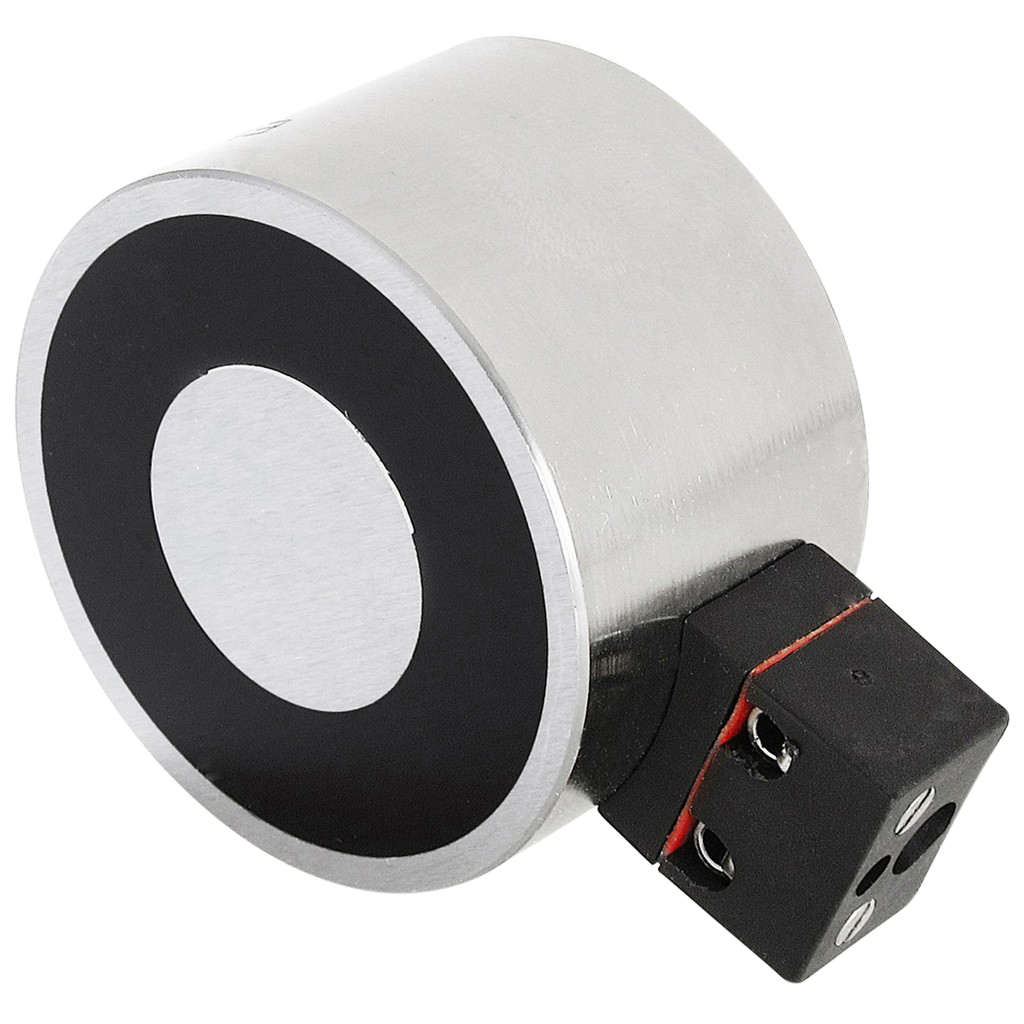

Electromagnets

CIRCULAR

CIRCULAR ECL

The max strength (in kg) is indicated at Air gap Zero. The electromagnet's surface is in contact with the iron's one.
The surface of the iron piece should be created with the minimal roughness. The max strength of attraction is obtained with an iron matching part, 10 mm thick.

The electromagnets are suitable to move and keep Iron pieces, for applications in complex systems, for positioning and robotization. Execution standard at 24 V DC. Other voltages available on request.Class F insulation. Cable Output power/ lower side.

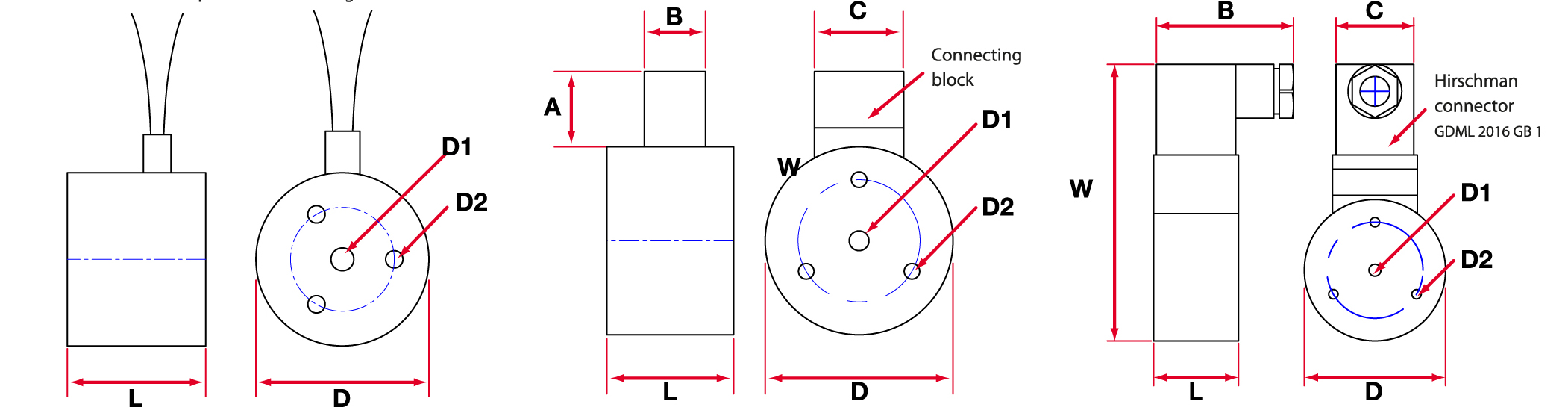

Picture.1 Picture.2 2 poles connector Figura.3 Hirschman connector

TYPE	D	L	A	B	C	D1	D2	CABLE LENGTH (RED+BLACK)	Consumption W	Strength MAX (KG)	Weight kg
ECL0.000000.20C	20	18	/	/	/	M4	M3	0.3 MM X 500 M (Pic.1)	2,40	5,40	0.015
ECL0.000000.25C	25	20	/	/	/	M4	M3	0.3 MM X 500 M (Pic.1)	2,16	11,5	0,066
ECL0.000000.30C	30	24	/	/	/	M5	M3	0.3 MM X 500 M (Pic.1)	3,36	25,8	0,108
ECL0.000000.40C	40	27	16	13	19	M5	M4	2 poles connector- W/O CABLE (Pic.2)	5,50	58,6	0,21
ECL0.000000.50C	50	30	16	13	19	M5	M4	2 poles connector- W/O CABLE (Pic.2)	5,70	111,80	0,364
ECL0.000000.50C.240 (EXEC. 240 V)	50	30	16	50	30	M5	M4	Hirschman connector - W/O CABLE (Pic. 3)	8,56	111,80	0,408
ECL0.000000.65C	65	35	16	13	/	M8	M5	2 poles connector- W/O CABLE (Pic.2)	8,20	171	0,710
ECL0.000000.65C.240 (EXEC. 240 V)	65	35	16	50	30	M8	M5	Hirschman connector - W/O CABLE (Pict. 3)	10,70	171	0,744
ECL0.000000.80C	80	38	16	13	19	M8	M6	2 poles connector- W/O CABLE (Pic.2)	13,30	203,94	1,20
ECL0.000000.100C	100	43	16	13	19	M10	M6	Hirschman connector - W/O CABLE (Pict. 3)	22	367,09	2,20

All the measures are in millimeters. Oher sizes and shapes by request.
